Custom Jenkins Setup

Requirements

  • You have installed Java Runtime Environment 8.
  • You have installed Jenkins v 2.60.3 or higher running on Linux. We've tested with debian-stretch.
  • A Jenkins user with administration rights.
  • Your Jenkins instance has access to github.com.

Docker

Most of the tools project "Piper" uses to build, test, and deploy your application are available as out-of-the-box Docker images. You don't need to manually install them on your Jenkins server or Jenkins nodes, nor care for updates. Instead, these are automatically pulled from hub.docker.com.

Install Docker if you haven't installed it, yet. To install the newest version of Docker, see Docker Community Edition. Note: We've tested on Docker 18.09.6.

If your Jenkins server already runs as Docker container, make sure the tools container can run on the Docker host. Extend the Docker call in the following way:

docker run ...  -v /var/run/docker.sock:/var/run/docker.sock ...

Plugins

Project "Piper" requires a set of plugins installed on your Jenkins server. This set may evolve in the future. Make sure that all plugins of the appropriate versions are installed.

The Cx server repository contains an up-to-date list of the required plugins. To ease the installation, download the list with the following command and use the Jenkins client:

curl -o plugins.txt https://raw.githubusercontent.com/SAP/devops-docker-cx-server/master/jenkins-master/plugins.txt

On the Jenkins server, run the following command with a user that has administration rights:

cat plugins.txt | awk '{system("java " "-jar jenkins-cli.jar -s http://localhost:8080 -auth ${ADM_USER}:${ADM_PASSWD} install-plugin " $1)}'

Shared Library

Shared libraries extending the Jenkins pipeline are defined within the Jenkins system configuration. A library is defined by a link to its source repository and an appropriate version identifier. To add the project "Piper"s library, execute the following steps:

  1. Open the Jenkins UI under http://<jenkins-server-address>:<http-port>, login with administration privileges, and choose Manage Jenkins > Configure System.

    Configure System

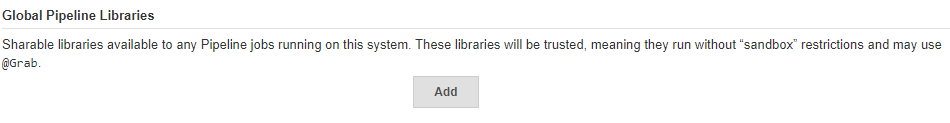

  2. Scroll down to section Global Pipeline Libraries and choose the Add button. A new library is created.

    Add Library

  3. For Library Name, enter piper-lib-os.

  4. For Default Version, enter the branch or tag you want to consume (e.g. master or v0.1).

  5. For Retrieval Method, choose Modern SCM.

  6. For Source Code Management, choose Git.

  7. For Project Repository, enter the GitHub URL of the project Piper shared library https://github.com/SAP/jenkins-library.

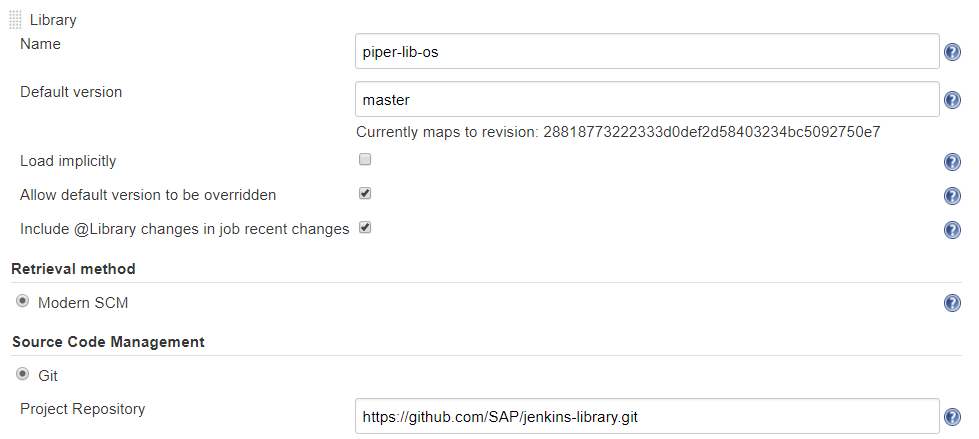

    Library Setup

  8. Save your changes.

Result: The library is available as piper-lib-os. To use it by any pipeline, add the following line to its Jenkinsfile:

@Library('piper-lib-os') _

When the pipeline is launched, Jenkins downloads the corresponding library as source and compiles it before the pipeline is processed.

User Permission Issue

Your native Jenkins installation defines the user jenkins as a service user. If it doesn't exist, it is created. In this case, the user ID is the next free number determined by /etc/passwd - probably starting from 100. In contrast, the official Jenkins Docker image defines the user jenkins with the user ID 1000 as a service user inside the container. So, the service user ID of your native Jenkins server most likely differs from the user ID of the official Jenkins Docker image.

This could have impacts.

Project "Piper" runs many pipeline steps as Docker images. If a Docker container is created, the Jenkins Docker plugin passes the Jenkins user and group ID as a process owner into the Docker container. Binding a folder from the host machine into the container - used to exchange files between steps - results in file permission issues, if the user inside the container doesn't have rights for the folder on the host machine or vice versa.

Although you won't face this issue with images of project "Piper" , some 3rd-party Docker images follow this convention and expect to be executed under userid 1000, like node.js, which is used by a set of additional steps.

If you face such a user permission issue, choose between the following options:

  • Change the ID of your Jenkins service user to 1000.

  • Create your own images and solve the permission issues by removing the file system restrictions. Adjust the configuration accordingly, for example, adjust the npmExecute step of your project's YAML:

  npmExecute:
    dockerImage: 'my-node:8-stretch'
  • Set up a namespace. The user permission issue 781 of the project "Piper" repository describes how to set up a Linux kernel user namespace to prevent the mismatch of user IDs. Note: This solution is experimental and should be well-considered.
